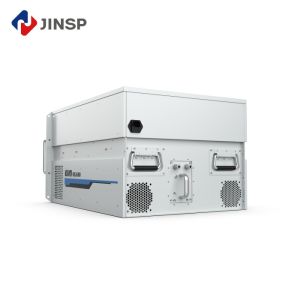

    JINSP RS2600 – Breakthrough Raman Analyzer for Multi-Gas Quantification

    Ask Lasest Price
    Brand Name : JINSP
    Model Number : RS2600
    Certification : CE ISO9001
    Price : USD100000 - USD142900
    Payment Terms : T/T,Western Union
    Supply Ability : 50 Unit 90-120 days
    Delivery Time : 80-100 working days
    • Product Details
    • Company Profile

    JINSP RS2600 – Breakthrough Raman Analyzer for Multi-Gas Quantification

    JINSP RS2600 – Breakthrough Raman Analyzer for Multi-Gas Quantification

    The RS2600 redefines gas analysis with Raman spectroscopy, enabling detection of CH₄, Cl₂, HD, and 500+ gases—all in one device. Perfect for R&D and industrial QA/QC.


    Technical Highlights:

    High-speed: Seconds per analysis.

    Ultra-wide range: 1 ppm to 100% full-scale.

    Zero pressure dependency: Reliable under variable conditions.

    Use Cases:

    Electronic gases: PF₅, F₂ purity checks.

    Pharmaceuticals: Fermentation gas monitoring (O₂, CO₂).

    Technical Specifications:

    ComponentsN2, H2, O2, CO, CO2, H2S, CmHn, etc.
    Analysis time2 seconds
    Measurement uncertainty≤0.2%
    Laser excitation wavelength532 ± 0.5 nm
    Spectral coverage200 ~ 4200 cm-1
    Spectral resolution≤8 cm-1 at full spectral range
    Air circuit interface6 mm standard tube fitting (3 mm, 1/8’’, and 1/4’’ are optional)
    Input voltage100~240 VAC,50~60 Hz
    Sample gas temperature-50 ~ 40 ºC
    Sample gas pressure<1.0 MPa
    Unit dimensions485 mm (Width) × 350 mm (Height) × 600 mm (Depth)
    Weight40 kg

    Application: 1. Monitoring of F2, N2, HF and other components in the fluorination process.

    Application: 2. Quantitative analysis of different Elements in Petrochemical Natural Gas

    Effective identification and quantification of various components in natural gas mixtures within 2 seconds, such as alkanes, alkenes, alkynes, etc.

    Application: 3. Detection of components in reaction and emitted gases of fluorine materials, such as reactant gases, common gases, fluoinated gases.

    Application: 4. Detection of impurity gases and electronic special gases.

    Gas Analyzer Features:

    Unlock Precise Multi-Component Analysis!

    Our advanced solution harnesses quantitative multi-standard curve modeling integrated with chemometric methods to decipher precise correlations between spectral signals and diverse component concentrations. This comprehensive approach significantly elevates analytical accuracy while enabling simultaneous analysis of multiple chemical components—delivering a powerful, integrated solution for quantitative assessment of complex samples.


    Defy Environmental Variables, Deliver Consistent Results!

    Even amid sample gas pressure fluctuations or testing condition variations, this quantitative method maintains uncompromised accuracy. Engineered with exceptional stability and robustness, it guarantees consistent, reliable results in any environment. This provides trusted analytical assurance for both scientific research and industrial applications.

    Company Introduction:

    JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company’s core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.


    JINSP offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, and customs. Products are available nationwide and are exported to over 30 countries, with cumulative sales exceeding 3,000 units.


    Benefit from 30+ R&D engineers, including 4 Ph.D., JINSP is deeply rooted in the field of personalized product customization, and is committed to meeting the diverse and unique needs of customers with excellent professional technology and innovative design capabilities.


    FAQ:

    Q: This is the first time I use, is it easy to operate?

    A: We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer. Also our technicians will offer professional tecnical opearation meetings.

    Q: Can you offer a operation training?
    A: Your technicians can come to our factory for a training. Jinsp technical engineers can go to your place for local support.
    ( installation, training, debugging, maintenance )

    Q: How to receive a best price in the shortest time?

    A: When you send us an inquiry, please kindly offer details with wavelength, detector, effective pixels, focal length and so on. We will send you quotation with details soon to your email.

    Q: Do you have MOQ requirement of each order?

    A: No, we support order for even 1pc order.

    Q: What is the product warranty?

    A: All product has 1 year warranty, support extending warranty period with extra cost. Please contact with our sales person.
