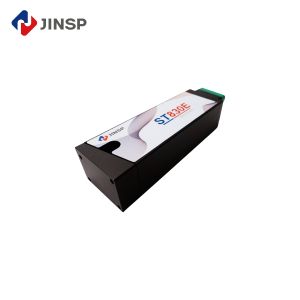

Wavenumber linear Depth Imaging OCT Spectrometer

The JINSP ST830E/ST850E spectrometers are purpose-built for spectral domain OCT applications, where they function as the decisive element influencing system performance. Their design directly impacts essential parameters such as the system's frame rate capability and the gradual reduction of signal-to-noise ratio during operation.

Engineered with a unique optical configuration, the ST830/850E achieves intrinsic wavenumber-linear dispersion that facilitates direct equal-interval sampling. This innovation allows FFT processing without intermediate resampling steps, dramatically simplifying the signal chain while enhancing noise performance. When combined with its high-performance VPH grating (delivering 110dB SNR at 7mW, 120kHz), the system produces outstanding in vivo OCT/OCTA images with remarkable clarity.

Technical Parameters:

Technical Characteristics:

Deep Imaging: Excellent roll-off performance enables imaging at deeper layers.

Wavenumber Linearity:

• Special optical path design allows for equidistant wavenumber sampling on the hardware.
• Direct FFT (Fast Fourier Transform) is possible, significantly reducing data processing complexity.

Fast Processing: The USB3.0 interface allows for a scanning speed of 20-130kHz, making OEM processes
more efficient and straightforward.

High Signal-to-Noise Ratio, High Resolution: Efficient VPH grating, optical resolution approaching the diffraction limit.

Typical Applications:

• Industrial OCT Systems: Metal cutting and welding, Laser oscillation etc;
• Medical OCT Systems: Vascular imaging, Anterior chamber of eye etc;
• Other OCT Systems: Detection of uniformity in multilayer coatings etc

Company Introduction:

JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, and related products have been obtained has won authoritative awards such as the Geneva International Invention Award, the Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.JINSP is a professional leading solution provider of molecular spectroscopy, particulaly in Roman Spectroscopy for many years.

Our products mostly include:
--UV VIS NIR fiber optic spectrometers;
--Desktop/portable, online Raman analyzers for laboratory or indutrial liquid & gas analysis;
--On-site rapid detectors/identifiers based on Raman technology for drugs, liquid, food safety, explosive & hazardous materials, pharmaceutical industry etc;

FAQ:

Q1: What is the brand name of this OCT Spectrometer?

A1: The brand name of this OCT Spectrometer is JINSP.

Q2: What is the model number of this OCT Spectrometer?

A2: The model number of this OCT Spectrometer is ST830E.

Q3: Where is this OCT Spectrometer made?

A3: This OCT Spectrometer is made in China.

Q4: What are the payment terms for this OCT Spectrometer?

A4: The payment terms for this OCT Spectrometer are T/T and Western Union.

JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company’s core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.
