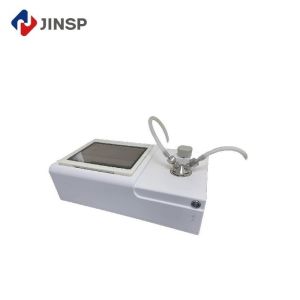

IT2000CE Online Process FTIR Analyzer
The IT2000CE system provides non-stop monitoring of complete
reaction compositions, tracking everything from unreacted starting
materials to final products and unwanted impurities. This
continuous stream of analytical data enables live forecasting of
reaction speed, completion timing, efficiency metrics, and
unexpected process events.
The IT2000CE transitions seamlessly between laboratory development
and industrial production applications. Its color-independent
detection technology ensures accurate readings from even the
darkest samples, and specialized algorithms extract liquid
component data from suspensions while ignoring solid interference.
Engineered for durability, the system operates reliably under harsh
conditions involving temperature fluctuations, high-pressure
scenarios, and contact with corrosive substances.
Technical Pamareters:
Parameter | Flow cell version | Immersion probe version |
Dimension | 51cm(width)x30cm(depth)x25cm(height) |
Weight | ≤15 kg |
Spectral resolution | 2 cm-1 , 4 cm-1 , 8 cm-1 optional |
Sample type | Strong acid, strong alkali, strong corrosive |
Screen | 10.5-inch capacitive touch screen, supports multi-touch and
multi-angle folding fixation |
Spectral range | 500-5000 cm-1 | 600-1800 cm-1 |
Temperature withstand | -50℃ ~ 100 ℃ | -150℃~ 230 ℃ |
Pressure withstand | 2 MPa | 10 MPa |
Fiber length | - | 1.5 m, 3 m optional |
Dimensional interface | Φ6, 1/8, 1/4 optional (hard pipes use ferrule joints, hoses use
pagoda heads) | Length 300 mm, diameter 6.35 mm (Hastelloy) |
Length 150 mm, diameter 6.35 mm (PEEK) |
Material | 316 stainless steel, 304 stainless steel,Hastelloy C276, Monel
alloy, TA2 optional | Hastelloy, PEEK optional |
Technical Highlights:
- Highly applicable;
- Fast: Data acquired in seconds
- Intuitive: Real-time display of the dynamic change of reactants and
products
- Multi-functional: Simultaneous measurement of the concentrations of
multiple components
- Intelligent: Automatic analysis of FT-IR spectra based on
intelligent algorithm
Reaction Monitoring Features:
- Real-time analysis while collecting data
- Multiple absorption peaks of target components can be marked while
IR spectra being collected. The change of the marked components is
displayed in real time.
- Flexible platform for online monitoring
- The embedded quantification model can be used to monitor component
concentration in chemical reactions in real time.
Company Introduction:
JINSP Company Limited has won the National Science and Technology
Commission's Scientific and Technological Achievement Appraisal
Certificate and the China Patent Excellence Award, and related
products have been obtained has won authoritative awards such as
the Geneva International Invention Award, the Beijing New
Technology and New Product Certificate, and the "Innovation
Achievement Award" of the Zhu Liangyi Analytical Instrument
Innovation Award.In addition, JINSP participated in the drafting of
several national and international standards, including
participating in the drafting of an international standard as the
only participating unit in China IEC 63085 International Standard:
System of spectral identification of liquids in transparent or
semitransparent containers; Drafting of two national standards:
GB/T 41086-2021 "General Technical Requirements for Safety
Inspection Equipment for Hazardous Chemicals Based on Raman
Spectroscopy", GB/T 40219-2021 "General Specification for Raman
Spectrometer".
FAQ
Q1:This is the first time I use,is it easy to operate?
A1:We will send you manual and guide vedio in English,it can teach
you how to operate the spectrometer.
Also our technicians will offer professional tecnical opearation
meetings.
Q2:Can you offer a operation training?
A2:Your technicians can come to our factory for a training. Jinsp
engineers can go to your place for local
support( installation , training, debugging, maintenance ).
Q3:How to receive a best price in the shortest time?
A3:When you send us an inquiry,please kindly offer details with
wavelength,detector,effective pixels,focal length
and so on.We will send you quotation with details soon to your
email.
Q4:If the spectrometer has problem in my place,how could I do?
A4:The spectrometer has one year warranty.If it breaks down,our
technician will figure out what the problem maybe,
according to client's feedback.We can repair for free within one
year warranty.
Q5:Which payment can be acceptable ?
A5:We could accept the payment by T/T, Paypal, Western Union,L/C,
etc.
